X1R Inverted Reservoir Monoshock – Fully Adjustable Rear Shock Absorber | Vario, Vision, Lead, SH Mode, Scoopy, Beat

Experience premium-grade suspension performance with the X1R Inverted Reservoir Monoshock, engineered with a separate inverted reservoir design for superior heat dissipation and consistent damping under demanding conditions. Both the upper mount and lower bracket are crafted from solid forged aluminum, precision-machined for exceptional strength and a premium finish, while steel bearing bushings resist deformation and maintain precise alignment over time. Equipped with a 108 lbs spring for excellent elasticity, the shock delivers a smooth, comfortable ride tuned specifically for Vietnamese road conditions, and its long shock travel helps prevent bottoming out on rough or uneven roads. Riders get full control with spring preload adjustment (10mm), ride height adjustment (5mm), 26-click rebound damping, and compression damping adjustment (24 low-speed clicks / 16 high-speed clicks). Available in three color/spec variants N5, O2, and O3 to fit a wide range of Honda and Yamaha models.

Key Features

Adjustment Features:

• Spring preload adjustment (10mm)
• Ride height adjustment (5mm)
• 26-click rebound damping adjustment
• Compression damping adjustment (24 low-speed clicks / 16 high-speed clicks)

Build & Performance:

• Upper mount and lower bracket made from solid forged aluminum, precision-machined
• Steel bearing bushings for deformation resistance and precise alignment
• 108 lbs spring with excellent elasticity
• Long shock travel for superior ride comfort and bottom-out prevention
• Inverted reservoir design for consistent damping performance

----------------------------------------------------------------------------------------------------

Variant Specifications

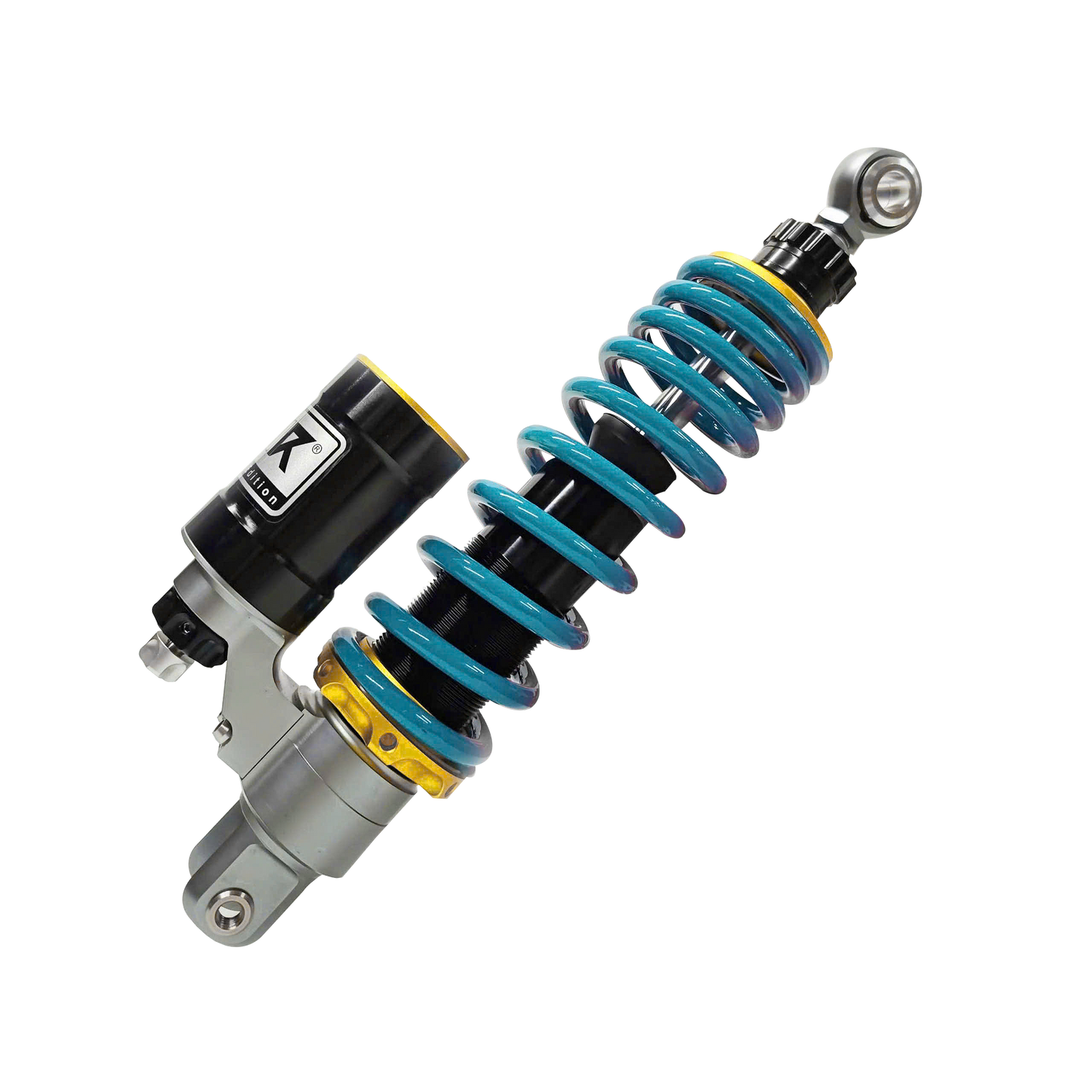

N5 (Blue/Black Spring)

• Vario 125/150 – 325mm / Lead 125 – 325mm
• Vision 110 – 325mm / SH Mode 125 – 325mm
• Chrome Rod: Black, Blue Spring

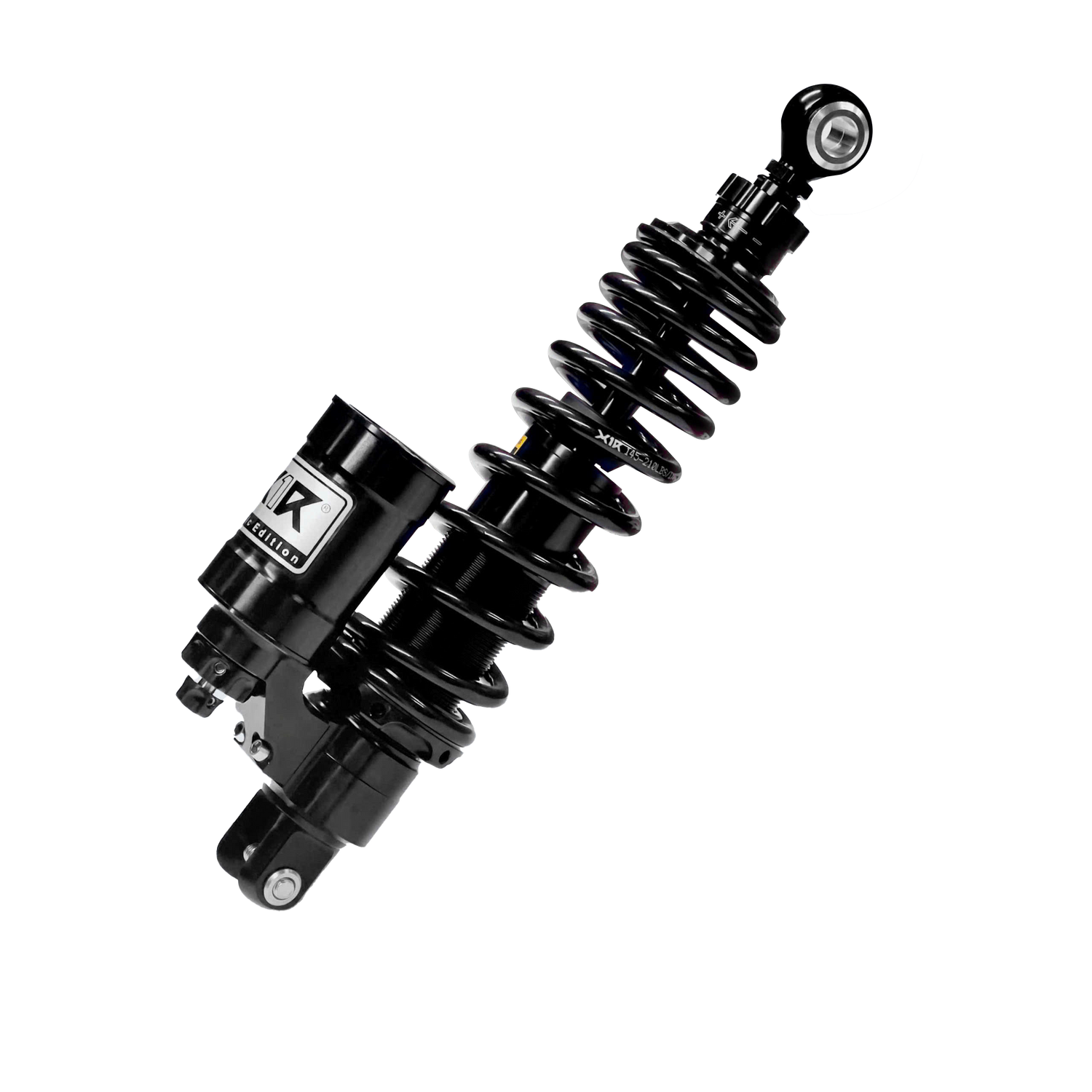

• Black Rod: Full Black

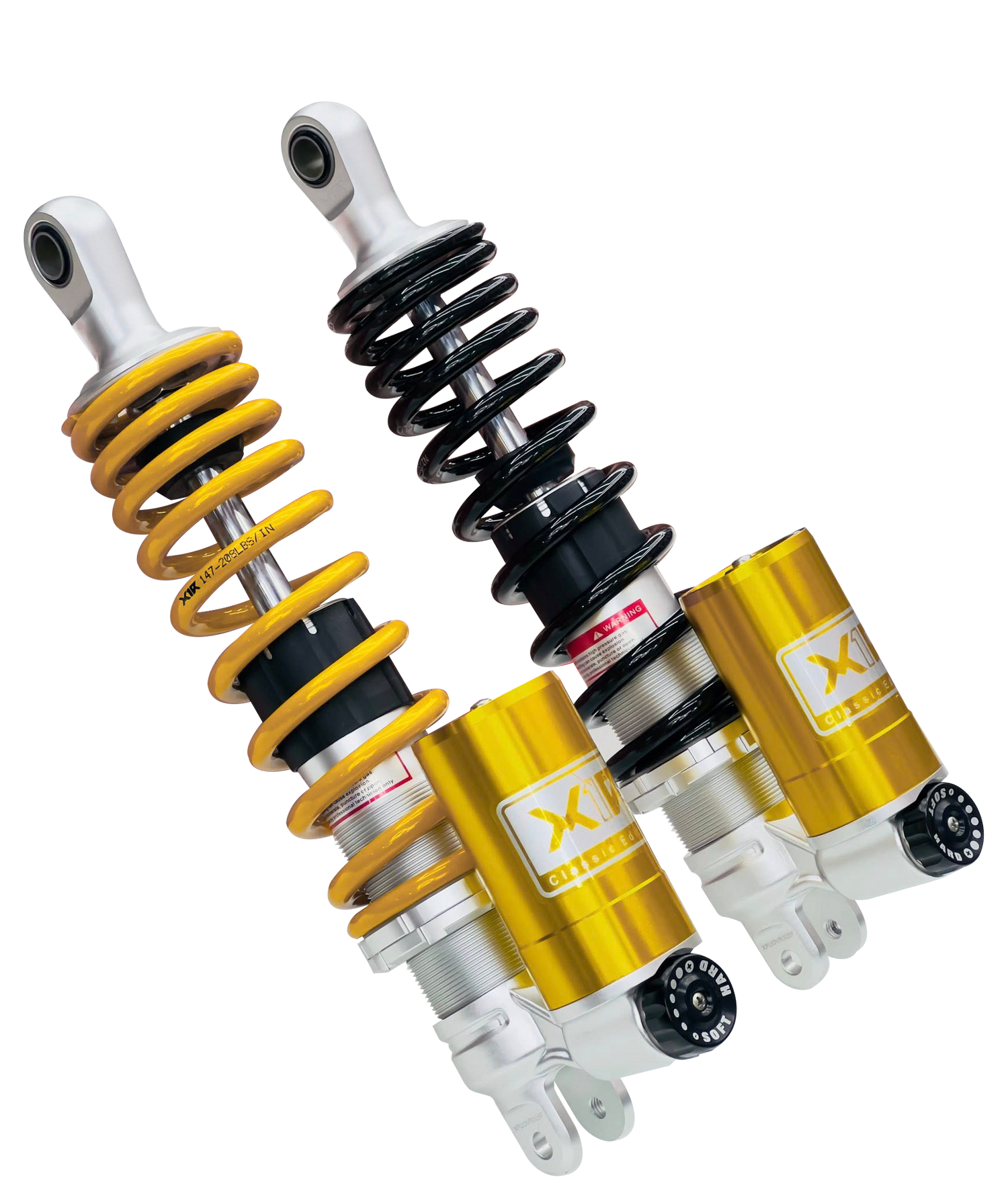

O2 (Yellow/Black Spring, Gold Reservoir)

• Vario 125/150 – 325mm, Lead – 125mm
• Vision 110, Scoopy, Beat 110 – 325mm
• SH Mode 125 – 325mm
• Chrome Rod – Yellow/Black Spring

O3 (Yellow/Black Spring, Yellow Reservoir)

• Vario 125/150 – 325mm, Lead – 125mm
• Vision 110, Scoopy, Beat 110 – 325mm
• SH Mode 125 – 325mm
• Chrome Rod – Yellow/Black Spring
